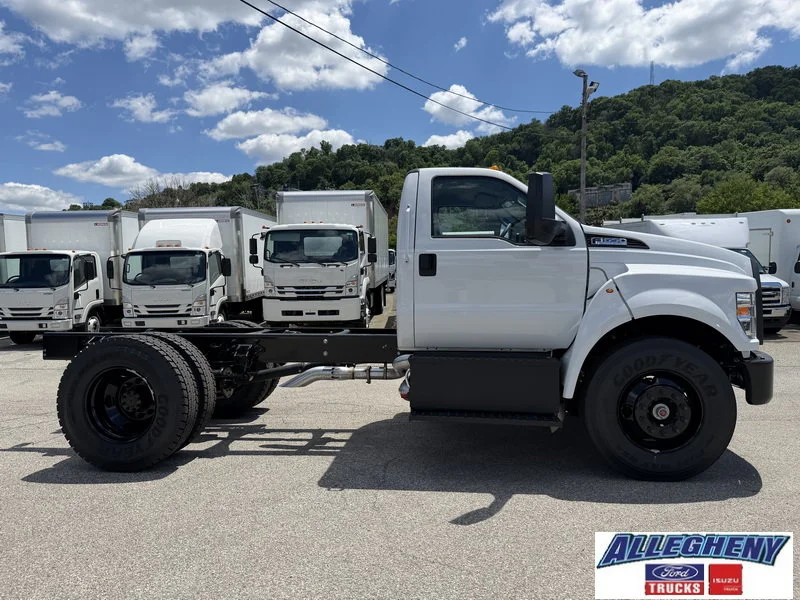

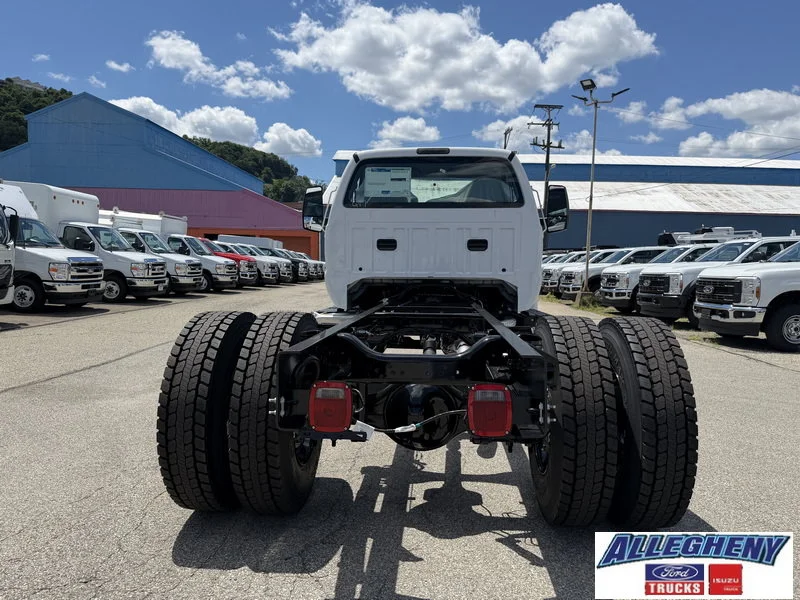

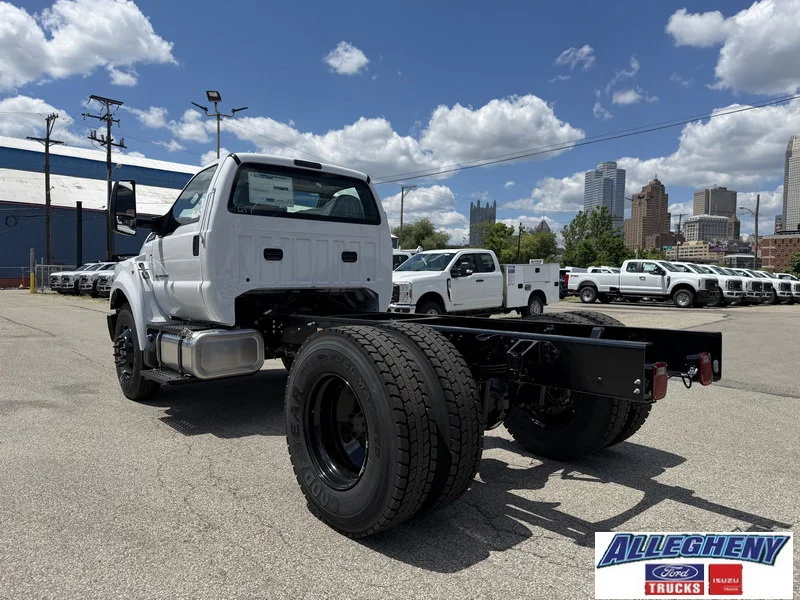

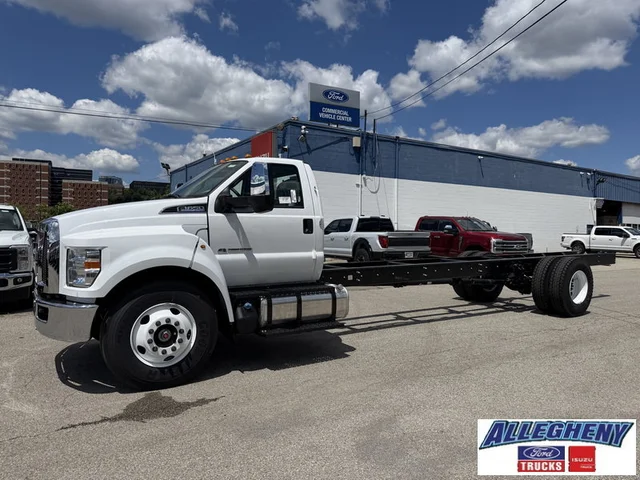

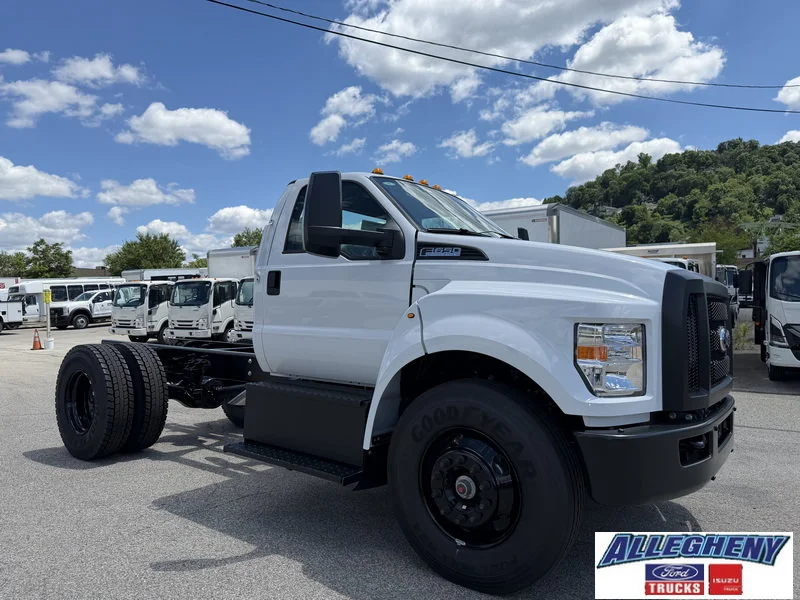

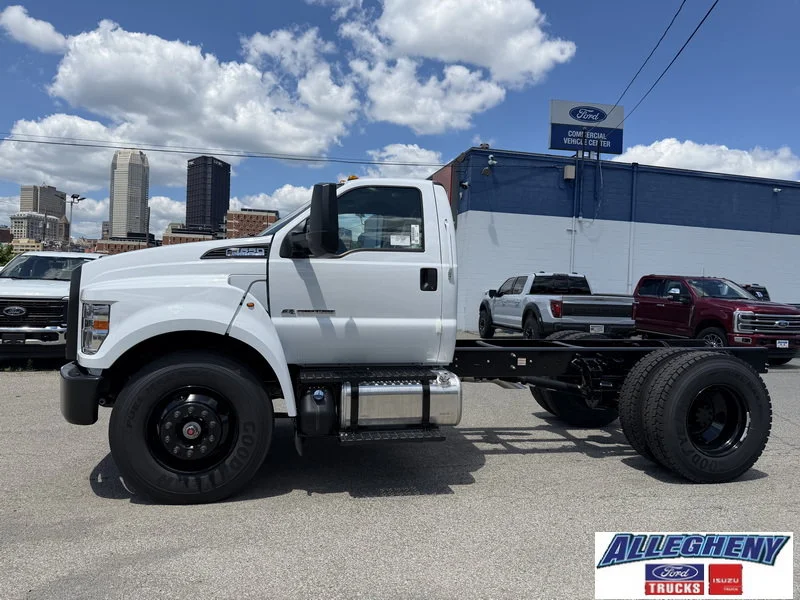

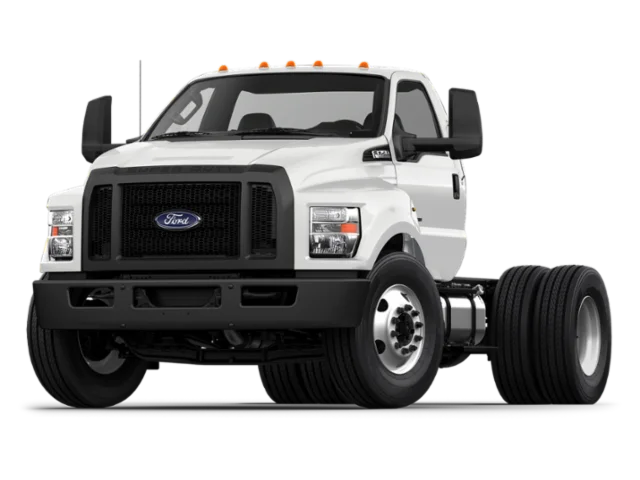

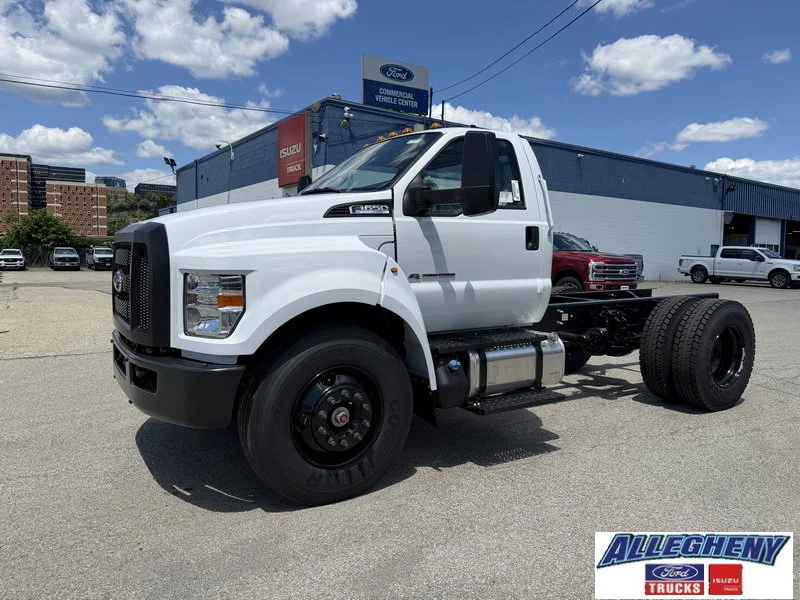

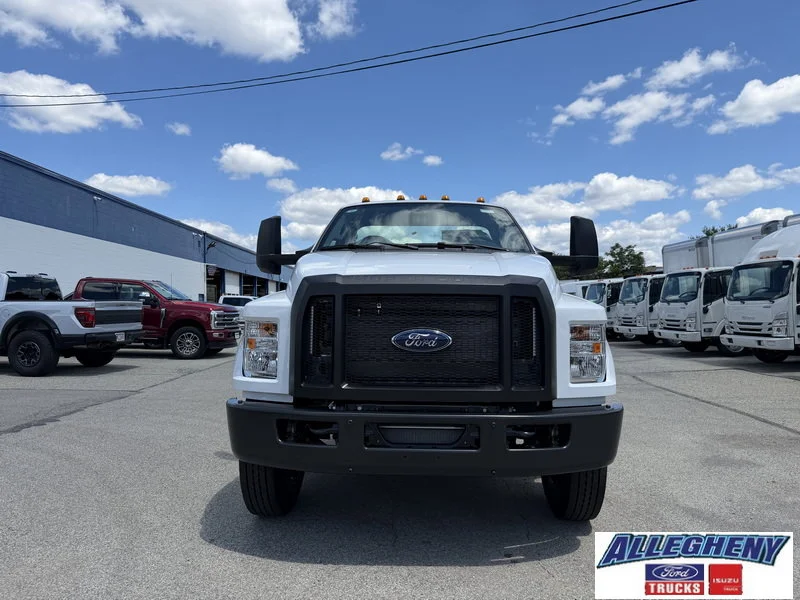

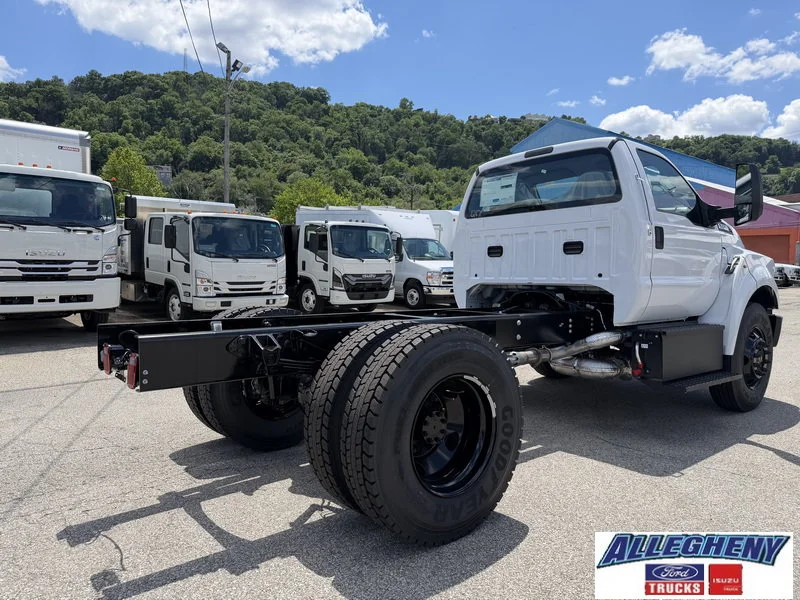

New 2027 Ford F-650-750 F-650 SD Diesel Straight Frame
- VIN: 1FDNF6DC7VDF02771
- Stock: 15758
(9) Photos
/
On Lot
Details Form Opened
Details
New 2027 Ford F-650-750 F-650 SD Diesel Straight Frame
VIN: 1FDNF6DC7VDF02771STOCK: 15758Description
2027 Ford Super Duty F-650 Cab & Chassis: * Build to Suit with your choice of Upfits! * 6.7L Powerstroke Diesel V8 - 270 HP, 10 Speed Automatic, 6.50 Axle * Preferred Equipment Package, Manual Regen, Upfitter Switches, 50 Gallon Aluminum Fuel Tank,, Rear Shock Absorbers, Jump Start Stud * A/C, Tilt, AM/FM, Power Windows/Locks, Auxiliary Switch, Remote Keyless Entry * 26,000# GVWR, 158 Wheelbase
Basic Info
-
Exterior:Oxford White
-
Drivetrain:Rear Wheel Drive
-
Interior:Gray
-
Transmission:Ford TorqShift® HD 10-Speed Automatic WITH PTO Provision and Tow/Haul
-
Engine:6.7L Power Stroke V8 Turbo Diesel 270 Horsepower, 800 lb.-ft. Torque
Vehicle Details
Exterior
- Tires, Front Two 11R22.5H Goodyear Fuel Max RSA (497 rev/mile)
- Tires, Rear Four 11R22.5H Goodyear Fuel Max RSA (497 rev/mile)
- White Steel Disc Front Wheels and White Steel Disc Rear Wheels
- Wheel Seals, Front - Oil lubricated, SKF ScotSeal PlusXL Seals
- Wheel Seals, Rear - Oil lubricated, SKF ScotSeal PlusXL Seals
- Black Side Windows Trim and Black Front Windshield Trim
- Black Door Handles
- Trailer Style Mirrors
- Fixed Rear Window
- Light Tinted Glass
- Speed Sensitive Variable Intermittent Wipers
- Composite/Galvanized Steel Panels
- Front Splash Guards
- Side Steps
- Hood Grille Mount
- Painted Grille - Plastic
- Lights - Roof Marker/Clearance - Amber Lenses, 5 Lights
- Body Builder Wiring - At Back of Cab, Combined -inc: sealed connectors for 2 ground circuits, w/combined left/stop, combined right/stop, park lamps, back up lamps, Also includes 2 additional pass through wires to cab
- Bumper, Front - Black, Full Width
- Tow Hooks, Front (2) - Frame-Mounted, Painted Black

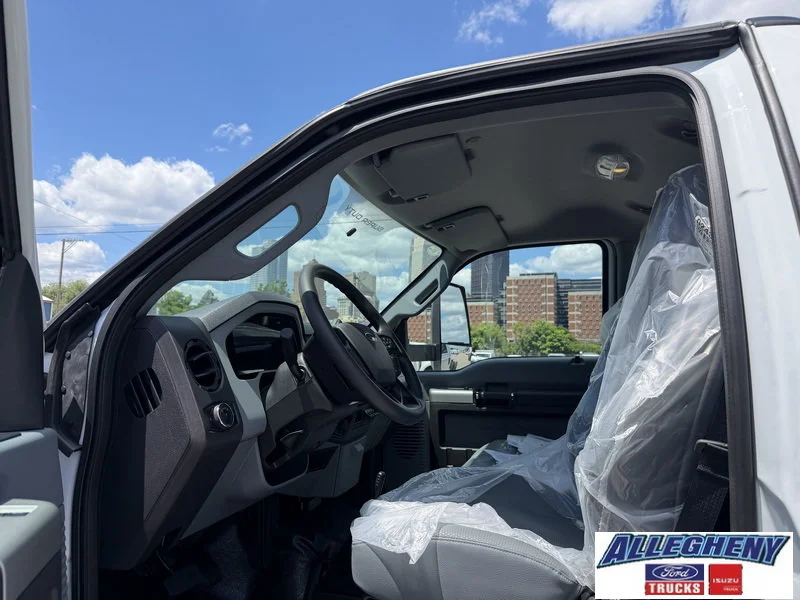

Interior
- 30/0/30 Fixed Driver & Fixed Passenger w/Consolette - Vinyl
- Bucket Folding Low Back Driver Seat w/4 Way Direction Control -inc: Manual Fore/Aft
- Fixed Driver Seat
- Bucket Fixed Low Back Passenger Seat w/2 Way Direction Control -inc: Manual Fore/Aft
- Fixed Passenger Seat
- Steering Wheel - Black PVC w/Integral Cruise Control Switches, includes Audio Controls
- Front Cupholder
- Cruise Control w/Steering Wheel Controls
- Manual Air Conditioning
- Full Cloth Headliner
- Urethane Gear Shifter Material
- Passenger Visor Vanity Mirror
- Partial Floor Console and 2 12V DC Power Outlets
- Front Map Lights
- Delay Off Interior Lighting
- Floor Covering - Black Vinyl
- Tracker System
- Four Body Builder Switches - Mounted in Center Instrument Panel -inc: With connector access located in engine compartment, Amperages vary by switch: 10, 15, 25, 25
- Manual Regen Initiation - Driver Interface in Message Center
- Instrument Panel Bin and Dashboard Storage
- Manual 1st Row Windows
- Driver Information Center
- Intelligent Oil Life Monitor
- Driver And Front Passenger Armrests
- 2 12V DC Power Outlets
Entertainment
- Streaming Audio
- Fixed Antenna
Mechanical
- 6.7L Power Stroke V8 Turbo Diesel - 270 HP @ 2400 RPM -inc: 800 lb.-ft, torque @ 1500 RPM
- Steering Column Lever Mounted Gearshift
- Rear-Wheel Drive
- Standard Rear Differential
- 1 and500CCA Maintenance-Free Battery w/Run Down Protection
- 195 Amp Alternator
- Engine Exhaust Brake
- Hydraulic Power-Assist Steering
- Single Aluminized Steel Exhaust
- Leaf Front Suspension
- Solid Axle Rear Suspension
- Hill Hold Control
Tech Specs
- Vehicle Name: Ford F-650 Straight Frame
- Body Style: Regular Cab
- Drivetrain: Rear Wheel Drive
- Passenger Capacity: 2
- Curb Weight - Front: 6218
- Curb Weight - Rear: 3451
- Gross Combined Wt Rating: 50000
- Engine Order Code: 99C
- Engine Type: Intercooled Turbo Diesel V-8
- Displacement: 6.7 L/406
- Fuel System: Diesel Direct Injection
- SAE Net Horsepower @ RPM: 270 @ 2400
- SAE Net Torque @ RPM: 800 @ 1500
- Trans Order Code: 44D
- Trans Type: 10
- Trans Description Cont.: Automatic w/OD
- Trans Description Cont. Again:
- First Gear Ratio (:1): 4.62
- Second Gear Ratio (:1): 2.92
- Third Gear Ratio (:1): 2.13
- Fourth Gear Ratio (:1): 1.77
- Fifth Gear Ratio (:1): 1.52
- Sixth Gear Ratio (:1): 1.28
- Reverse Ratio (:1): 4.70
- Trans Power Take Off: Yes
- Trans PTO Access: Yes
- Transfer Case Power Take Off: Yes
- Cold Cranking Amps @ 0° F (Primary): 1500
- Cold Cranking Amps @ 0° F (2nd): 1500
- Cold Cranking Amps @ 0° F (3rd): 1500
- Maximum Alternator Capacity (amps): 195
- Engine Oil Cooler: None
- Sect Modulus Rails Only: 12.64
- Frame RBM: 665,500
- Frame Strength: 50000
- Frame Thickness: 0
- Suspension Type - Front: Leaf
- Suspension Type - Rear: Leaf
- Spring Capacity - Front: 8500
- Spring Capacity - Rear: 19000
- Axle Type - Front: Non-Independent
- Axle Type - Rear: Rigid Axle
- Axle Capacity - Front: 8500
- Axle Capacity - Rear: 17500
- Axle Ratio (:1) - Front:
- Axle Ratio (:1) - Rear:
- Front Tire Order Code: T2A
- Rear Tire Order Code: R2A
- Spare Tire Order Code:
- Front Tire Size: 11.0R22.5 AS
- Rear Tire Size: 11.0R22.5 AS
- Spare Tire Size:
- Front Tire Capacity: 13220
- Rear Tire Capacity: 24040
- Revolutions/Mile @ 45 mph - Front: 497
- Revolutions/Mile @ 45 mph - Rear: 497
- Front Wheel Size: 22.5 X 8.25
- Rear Wheel Size: 22.5 X 8.25
- Spare Wheel Size:
- Spare Wheel Material:
- Steering Type: Re-Circulating Ball
- Turning Diameter - Wall to Wall: 47.6
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 15
- Rear Brake Rotor Diam x Thickness: 15
- Front Drum Diam x Width: 15
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Location: Left Front
- Aux Fuel Tank Location: Left Front
- Front Head Room: 40.7
- Front Leg Room: 41.4
- Front Shoulder Room: 68
- Front Hip Room: 67.6
- Wheelbase: 158
- Width, Max w/o mirrors: 96.7
- Height, Overall: 94.7
- Cab to Axle: 84
- Frame Width, Rear: 3.1
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Ninth Gear Ratio (:1): 0.69
- Tenth Gear Ratio (:1): 0.63
- Country of Origin: United States Ford Incomplete Vehicle
Details
- A/C
- Cruise Control
- Rear Wheel Drive
- Dual Rear Wheels
- 8 Cylinder Engine
- Turbocharged
- Diesel Fuel
- Daytime Running Lights
- Heated Mirrors
- Running Boards/Side Steps
- Power Steering
- Adjustable Steering Wheel
- Traction Control
- Intermittent Wipers
- A/T
- Variable Speed Intermittent Wipers
- Steering Wheel Audio Controls
- Automatic Headlights
- Passenger Vanity Mirror
- Transmission w/Dual Shift Mode
- Tow Hooks
- Trip Computer
- Bluetooth Connection
- Auxiliary Audio Input
- 10-Speed A/T
